Stable Quality
No.1 In The World
- Higher accuracy
- Faster Efficiency
- Better Stability
As the core model of Lingke Ultrasonic's high-end series, servo drive technology and intelligent control system, with micrometer level precision, intelligent interconnection and full scene adaptability, are specially designed for high-precision and high complexity industrial welding scenes, providing reliable plastic connection solutions for medical, automotive electronics, consumer electronics and other fields.

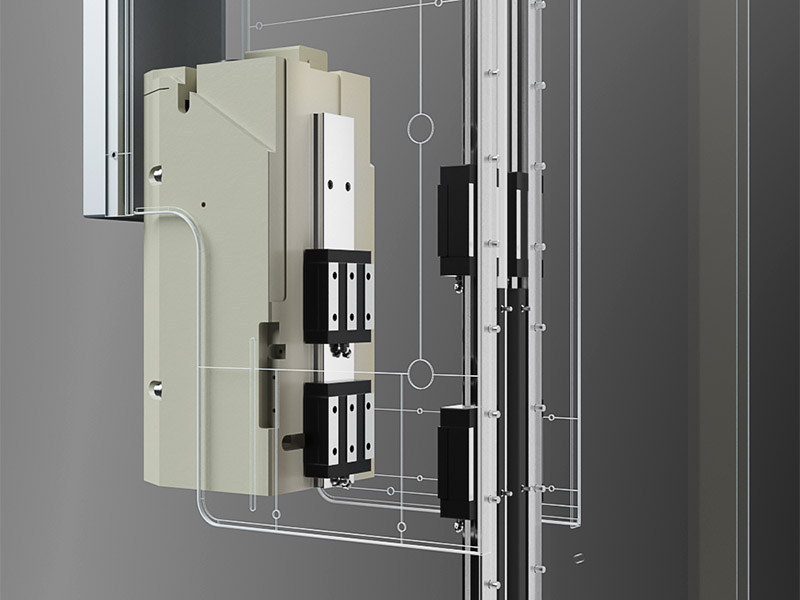

The column and vibration tube are both designed with high-strength sliding rail connections to ensure welding strength, and the mechanical strength and high precision are increased by pressing back
The column and vibration tube are both designed with high-strength sliding rail connections to ensure welding strength, and the mechanical strength and high precision are increased by pressing back
The column and vibration tube are both designed with high-strength sliding rail connections to ensure welding strength, and the mechanical strength and high precision are increased by pressing back
The column and vibration tube are both designed with high-strength sliding rail connections to ensure welding strength, and the mechanical strength and high precision are increased by pressing back
The column and vibration tube are both designed with high-strength sliding rail connections to ensure welding strength, and the mechanical strength and high precision are increased by pressing back
Manual mode, time mode, energy mode, absolute travel mode, relative travel mode, multi travel mode, ultrasonic stop mode, Xn mode.
Time triggered, travel triggered, pressure triggered, external triggered, and time starting from the source
Amplitude management, quality management, formula management, data export, and security management.
Fault self detection function, real-time automatic frequency tracking function, frequency locking function, circuit constant voltage function.
Supports WiFi/4G wireless network connection, RS232/485 data docking, cloud data management, remote assistance, printer output.
Trigger pressure control, welding pressure control, cooling pressure control, welding partial pressure control.
Scanning welding mode, automated assembly line mode, European safety mode, pulse mode.
| Type | L3000 Servo Ⅱ | ||||
|---|---|---|---|---|---|
| Frequency | 20kHz | 15kHz | |||
| Power | 2000W | 3000W | 3000W | 4000W | |
| Input voltage | AC220V | AC220V | AC220V | AC220V | |
| Machine journey | 511mm | 511mm | 511mm | 511mm | |
| Oscillation time | 0.001-9.99s | 0.001-9.99s | 0.001-9.99s | 0.001-9.99s | |
| Welding capability | Φ170mm | Φ300mm | Φ300mm | Φ300mm | |
| Operation Switch | Two-hand start,and emergency break button at front,external control switches supported | ||||
| Size(mm) | Press | 680×400×1656 | |||
| Size(mm) | Generator(Digital) | 436×124×270 | |||
| Weight | Press | 162.5kg | |||
| Weight | Generator(Digital) | 8kg | |||
